DYNO RESULTS

Performance Results

Proven Performance. Real Results.

On the Dyno

Select the chart to view it full size.

HORSEPOWER

116

TORQUE · LB-FT

130

The Bike & Setup

Year

2022

Make

Harley-Davidson

Model

FLHCS (Heritage Classic)

Engine Family

Milwaukee-Eight (M8)

Engine Size

114ci

Cam / Parts Installed

CR480MT Cam

Behind the Numbers

Build Details & Test Notes

Tuned by Road and Sport Harley-Davidson

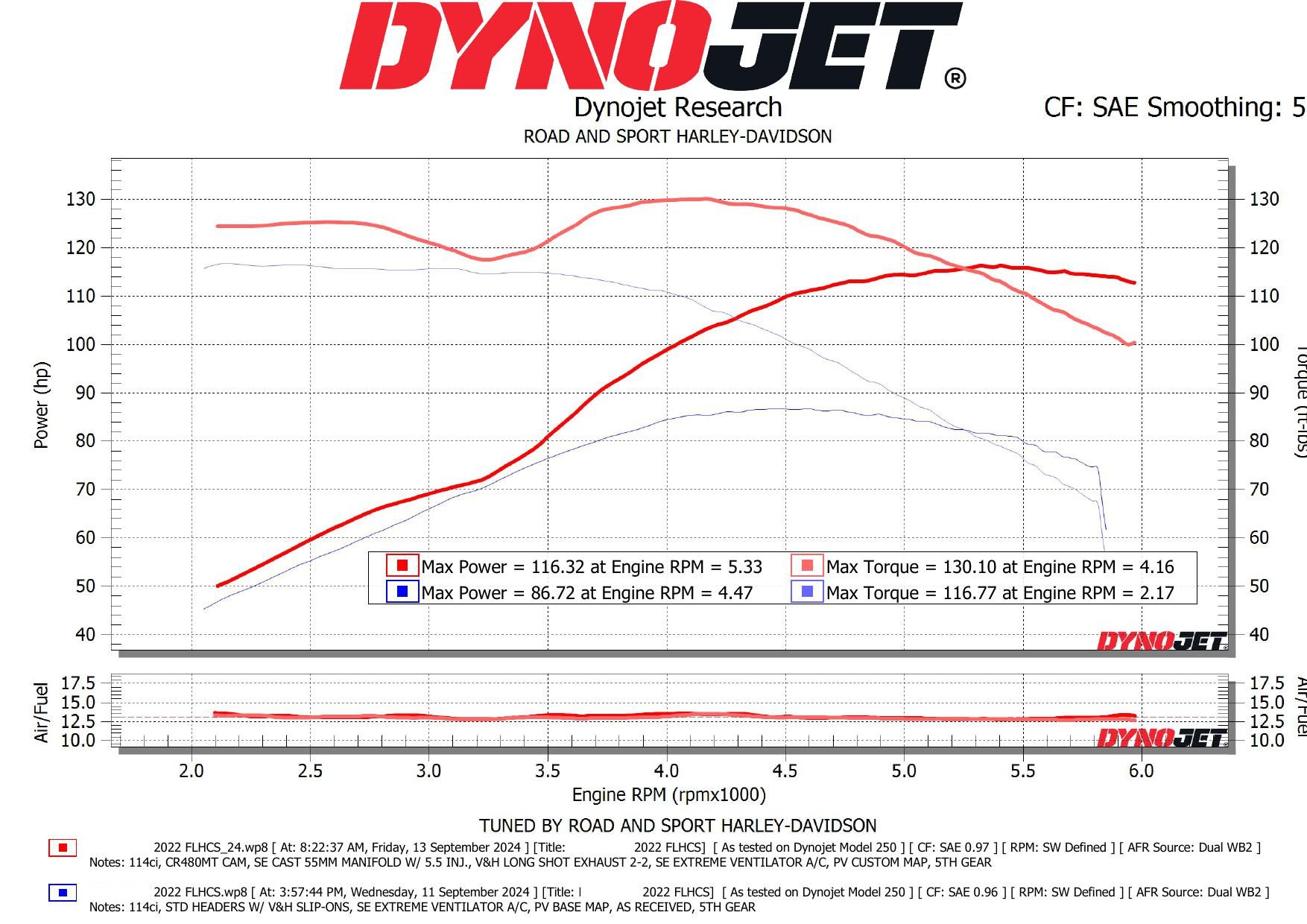

Comparison: Before (Blue) vs. After (Red)
Test Date: Friday, September 13, 2024
Peak Horsepower: 116.32 HP @ 5,330 RPM
Peak Torque: 130.10 ft-lbs @ 4,160 RPM
Baseline Horsepower: 86.72 HP @ 4,470 RPM
Baseline Torque: 116.77 ft-lbs @ 2,170 RPM
Engine: 114ci Milwaukee-Eight
Camshaft: CR480MT Cam
Intake Manifold: SE Cast 55mm
Injectors: 5.5
Exhaust: Long Shot Exhaust 2-2
Air Cleaner: SE Extreme Ventilator
Tune: PV Custom Map
Baseline Configuration: Stock Headers with V&H Slip-Ons, SE Extreme Ventilator A/C, PV Base Map
Tested on Dynojet Model 250
Correction Factor: SAE 0.97 (final), SAE 0.96 (baseline)
AFR Source: Dual WB2

2022 FLHCS
